Model 01

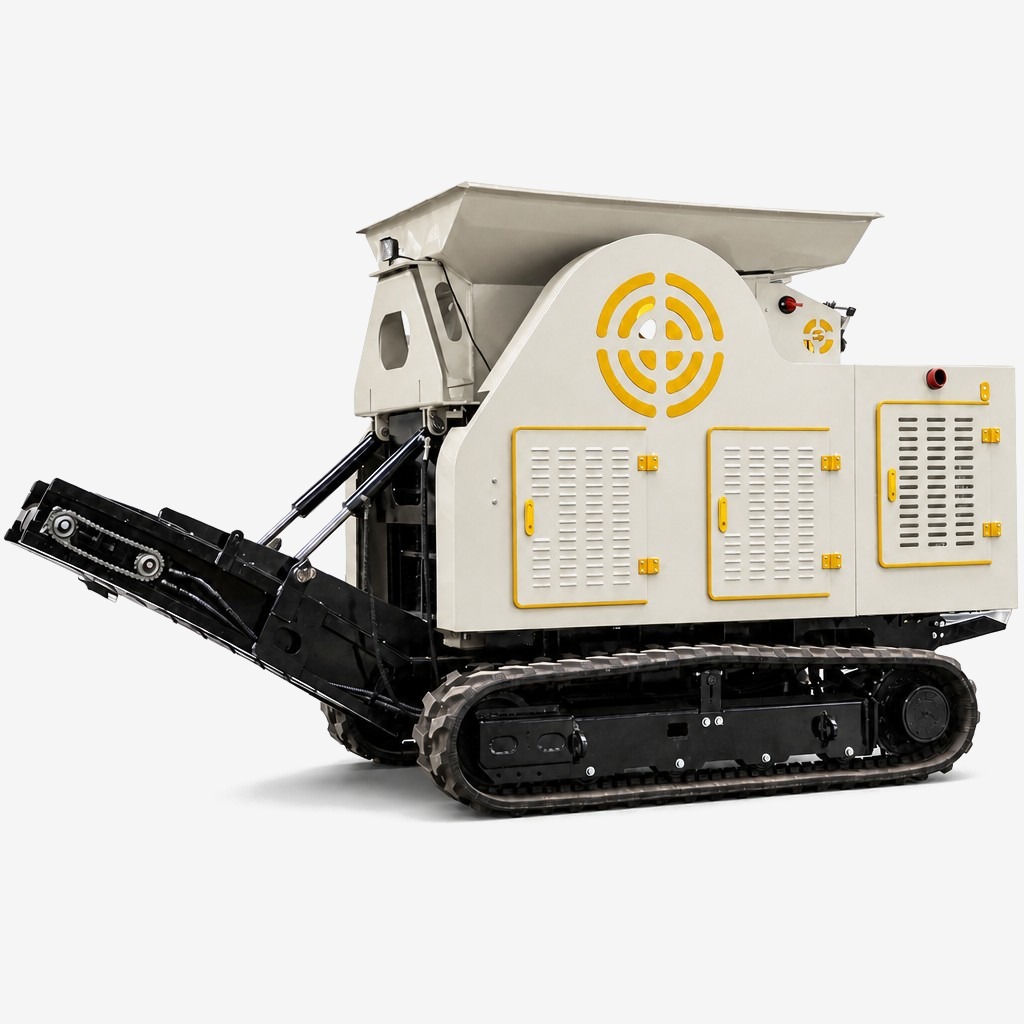

HTJC525 — Diesel Crawler Jaw Crusher
Capacity: 5–10 t/h · Diesel engine
The standard MiniTrack workhorse. A jaw crusher for the first stage of crushing all kinds of ore — rock up to 240 MPa compressive strength is reduced to medium particle size in one pass, on site.
- 250×400 Feed Inlet
- Laidong 385 Euro V Diesel
- Φ20–60 mm Output
- 0–4 km/h Travel
HTJC525 Technical Specifications
| Item | Parameter | Value |
|---|---|---|
| Equipment Parameters | ||
| Working dimensions | mm | 4050×1450×2050 |
| Transport dimensions | mm | 2750×1450×2050 |
| Vertical plate inner width | mm | 400 |
| Total outer width of guard | mm | 1250 |
| Crawler model | mm | 300×86×52.5 |
| Feed inlet size | mm | 250×400 |
| Maximum feed size | mm | 230×380 |
| Hopper volume | m³ | 0.4 |
| Stacking height | mm | 950–1000 |
| Crushing range | mm | Φ20–60 |
| Travel speed | km/h | 0–4 |
| Crawler specification | — | Rubber crawler |
| Production capacity | t/h | 5–10 |
| Conveyor belt width | mm | 400 |
| Operation & Main Accessories | ||
| Operation mode | — | Manual hydraulic valve |
| Travel mode | — | Hydraulic-powered crawler |
| Travel motor | — | Piston motor FTM03C |
| Hydraulic pump | — | Piston pump A10VS028 |
| Jaw crusher drive | — | Hydraulic piston motor |
| Conveyor drive | — | Hydraulic cycloid motor |
| Conveyor lifting | — | Hydraulic cylinder |
| Jaw lubrication | — | Grease |
| Crawler tensioning | — | Grease tensioning |
| Power System | ||
| Standard engine | — | Laidong 385 (Euro V) diesel |
| Max output power | kW/rpm | 18.5 @ 2350 |
| Oils & Fluids | ||
| Fuel tank | L | 50 |
| Engine oil | L | 4 |
| Hydraulic oil tank | L | 50 (32#/46#) |
Application: sand & gravel yards, mining, coal mining, concrete batching plants, power plant desulfurization. Materials: bluestone, yellowstone, iron ore, limestone, construction waste. Output varies with material and feed size.
