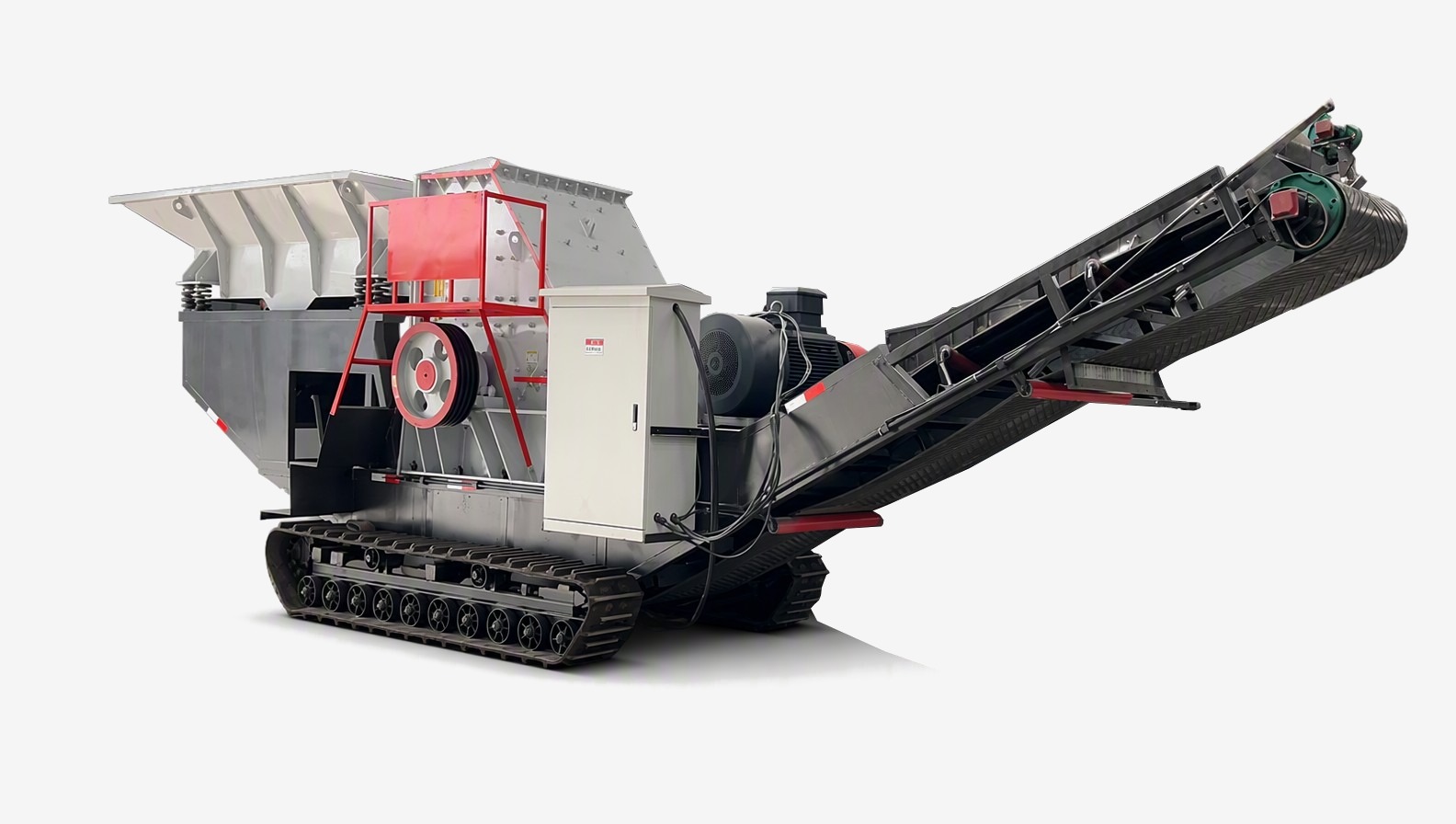

PCZ-1010 crawler mobile crusher — the efficient workhorse for medium recycling operations. Heavy hammer crushing on a diesel-driven tracked chassis, feeding recycled aggregate straight into brick lines and batching plants.
Between the mega-scale MegaTrack and the family-size MiniTrack, EcoBox is the balanced choice — powerful enough for commercial recycling stations and brick factories, agile enough to move between sites in a single day.
Processing capability
Maximum feed size
Heavy hammer crusher power
Self-propelled hydraulic tracks
| Component | Parameter | PCZ-1010 |
|---|---|---|
| Hopper | ||
| Feeding capacity | t/h | 200 |
| Maximum feed size | mm | 500 |
| Feeding height | mm | 3800 |
| Hopper volume | m³ | 4 |
| Vibrating Feeder | ||
| Size (L×W) | mm | 3000×900 |
| Power | kW | 2×2.2 |
| Hammer Crusher | ||
| Model | — | PCZ-1010 |
| Crushing opening (L×W) | mm | 1000×1200 |
| Maximum feed size | mm | ≤500 |
| Crusher power | kW | 90–110 |
| Main Belt Conveyor | ||
| Stacking height | mm | 3000 |
| Size (L×W) | mm | 9000×B650 |
| Power | kW | 4 |
| Crawler Frame | ||
| Undercarriage | — | Hydraulic crawler chassis, rubber tracks |
| Boat frame | — | Q345B welded steel |
| Drive System | ||
| Travel system | — | Diesel engine |
| Electrical System | ||
| Control cabinet | — | Soft start for hammer motor, direct start for others |
| Main components | — | Delixi, CHINT |
| Whole Machine | ||
| Processing capability | t/h | 60–100 |
| Total power | kW | 118 |
Note: output capacity varies with material type, feed particle size and other factors. We reserve the right to change technical parameters without prior notice; weight and overall dimensions are subject to the actual unit delivered.
PCZ heavy hammer crusher reduces demolition concrete, brick, and rubble in a single pass — no jaw pre-stage needed. Large crushing opening 1000×1200 mm handles 500 mm feed.
The hammer motor starts softly to protect the grid and drivetrain from shock loads. Other motors start directly. Main electrical components from Delixi and CHINT.
Rubber-track hydraulic undercarriage on a Q345B welded boat frame. Travel under its own diesel power — reposition within the yard or between sites in minutes.
