Simple, reliable, and built to last -- available in diesel and electric variants. Interchangeable molds for solid, hollow, and interlocking bricks.

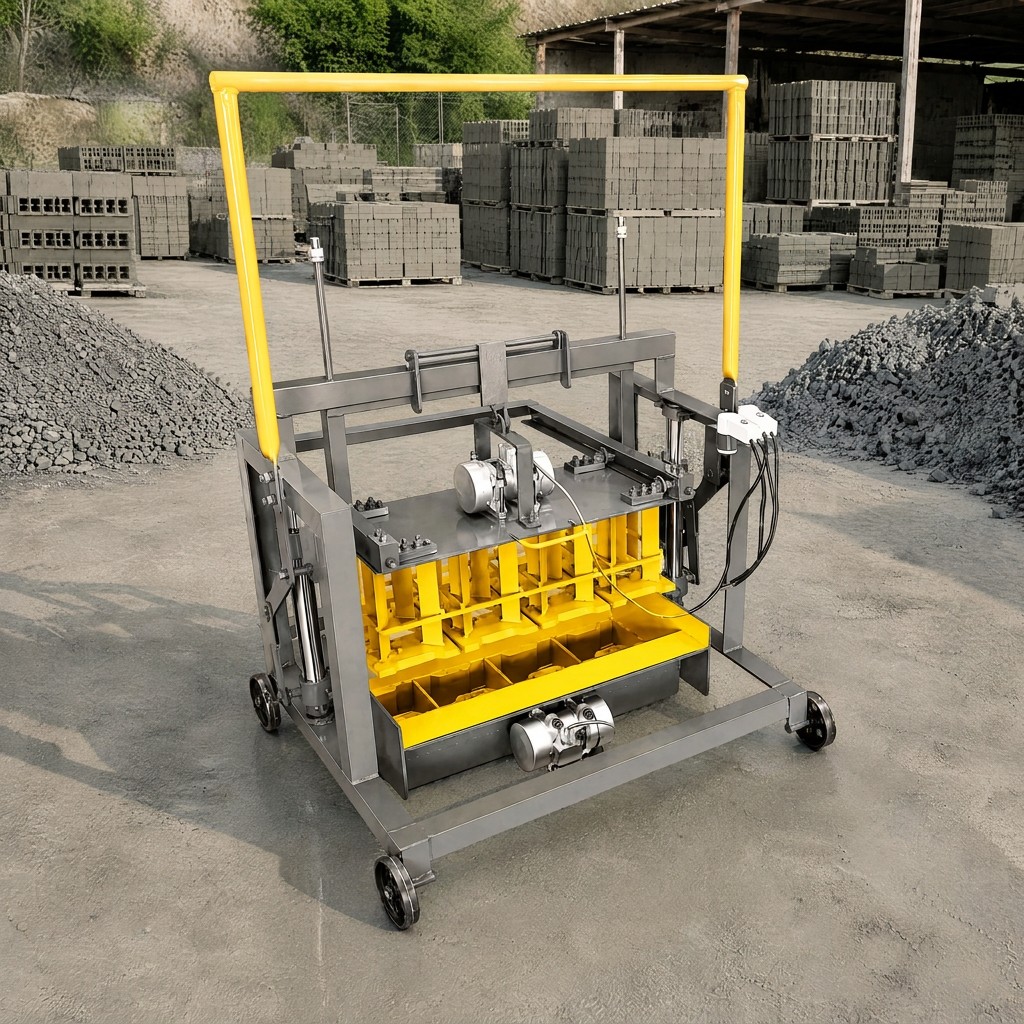

Our manual brick press is designed for entrepreneurs and small businesses entering brick manufacturing. Simple mechanical operation with minimal moving parts means low maintenance and decades of reliable service. Choose between the fuel-efficient diesel version for off-grid sites or the quiet electric version for workshop production.
Two variants -- same reliable pressing mechanism, different power options to match your site conditions.

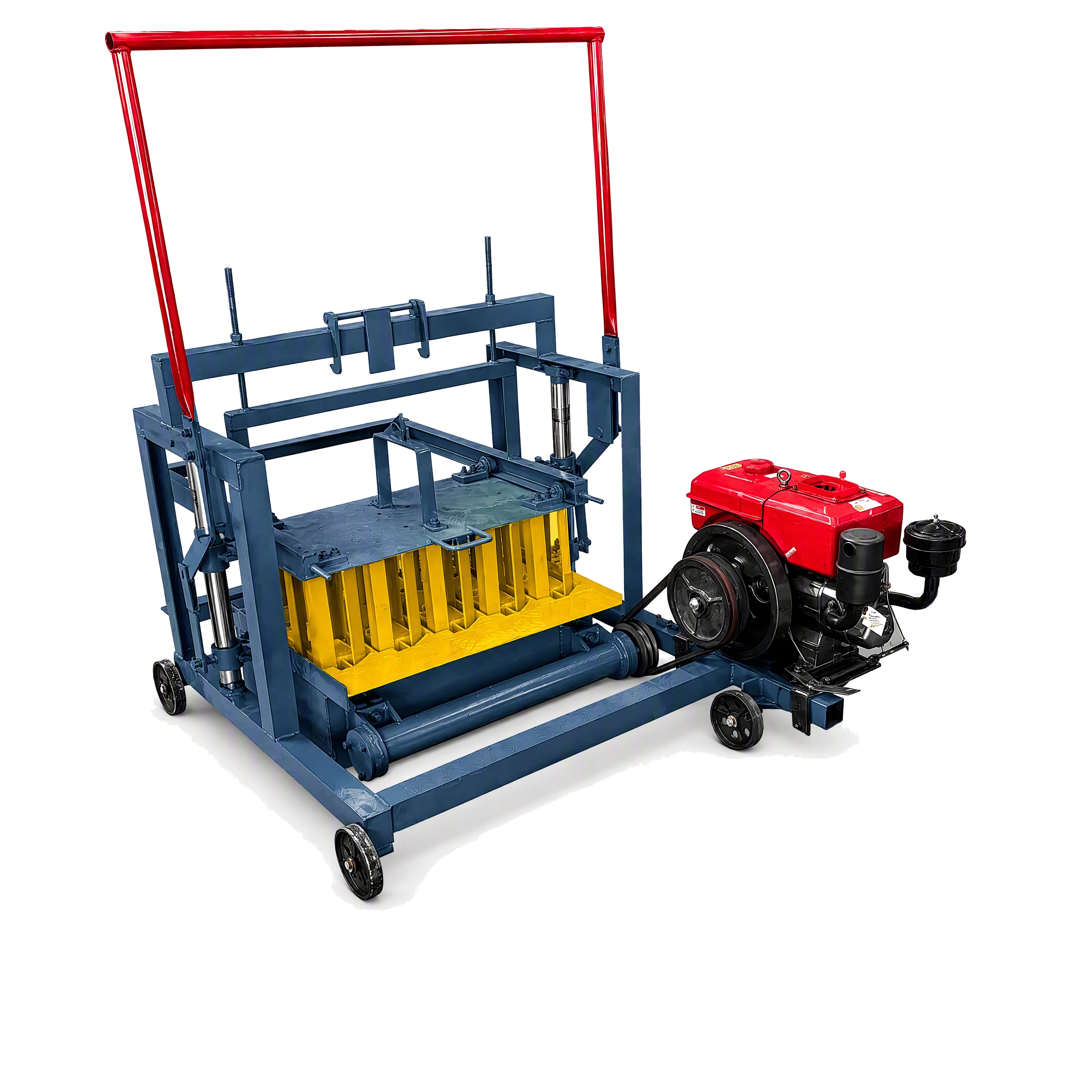

Independent power -- no electricity required. Ideal for remote construction sites, rural areas with unreliable grid access, and off-grid brick yards.

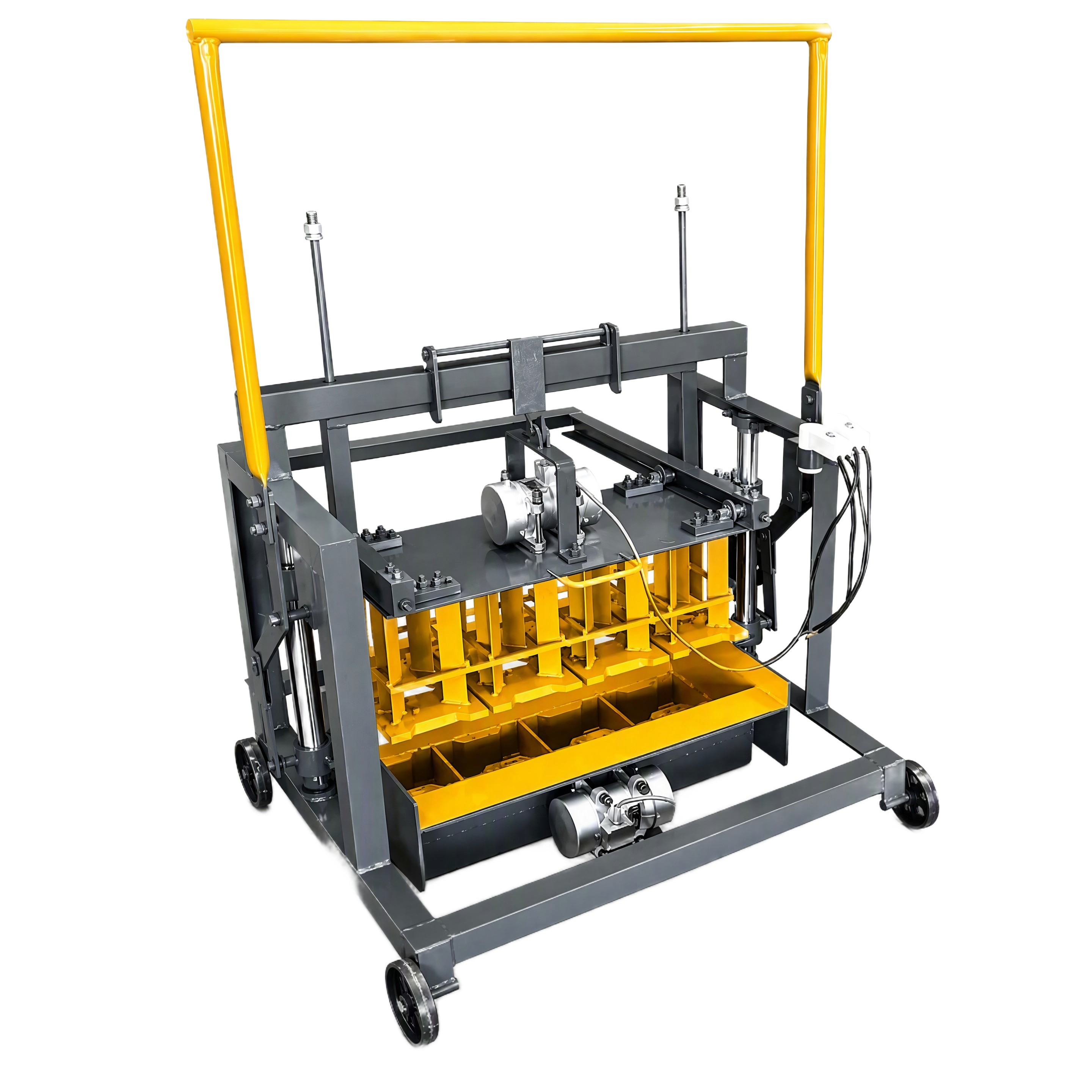

Clean and quiet -- ideal for workshop environments, urban brick yards, and sites with stable electricity. Lower operating cost per block.
Standard rectangular solid block -- most common building material
Lightweight with 2-4 cores -- reduced material, better insulation
Key-lock edges -- no mortar required, perfect for dry-stack walls
Decorative paving blocks -- driveways, walkways, and plazas
Open-cell pavers for green parking and erosion control
Road edge and drainage curbs -- uniform, consistent quality
Reinforced beam blocks for windows and door openings
Custom dimensions and shapes -- we machine to your specifications
| Specification | Diesel Version | Electric Version |
|---|---|---|
| Capacity | 2-4 blocks/min | 2-4 blocks/min |
| Power Source | 8 HP diesel engine | 1.1 kW electric motor |
| Fuel / Energy | ~2.5 L/h diesel | ~1.5 kWh / 1,000 blocks |
| Start Type | Manual recoil | Push-button electric |
| Max Block Size | 400 x 200 x 200 mm | 400 x 200 x 200 mm |
| Compaction | Eccentric cam + vibration | Eccentric cam + vibration |
| Vibration Frequency | 2,800 rpm | 2,800 rpm |
| Hydraulic Pressure | 15 MPa | 15 MPa |
| Mold Change Time | ~10 minutes | ~10 minutes |
| Operators | 2-4 | 2-4 |
| Weight | ~450 kg | ~350 kg |
| Shipping Volume | 2.7 CBM | 2 CBM |
| Best For | Off-grid / Remote | Workshop / Urban |
